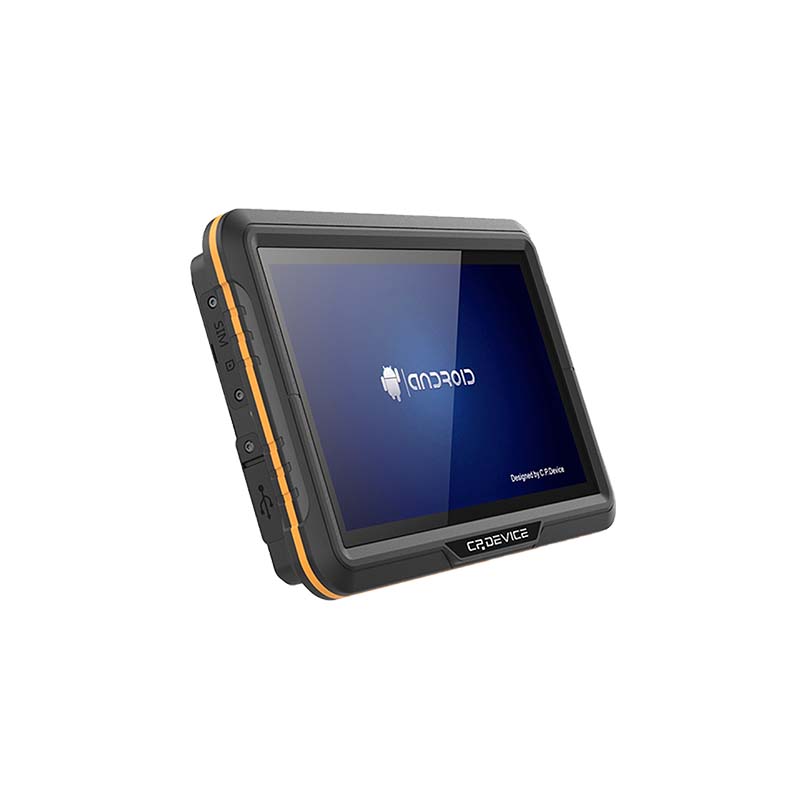

7" High Brightness Display
Octa-core Powerful CPU, GPU Supports OpenGLES 3.1
IP65 Sealing Level Design
Supports 250K/500K CAN Bus (J1939, CANopen, ISO15765)
9-36V Wide Voltage Input, Supports Ignition Detection
*We respect your confidentiality and all information are protected.
| System | Processor | Octa-core, Cortex A53 1.8GHz |
| Memory | 2G RAM (4G Optional) | |
| Storage | 16G ROM (64G Optional) | |
| Operating System | Android 9.0 | |
| Display | Screen Size | 7" |
| Resolution | 1024*600P | |
| Brightness | Above 750 Nits | |
| Screen Type | Capacitive Multi-Touch Screen | |
| Communication | Celluar | 4G/LTE (Dual SIM Optional) |
| WIFI |
2.4GHz/5.8GHz WiFi, IEEE 802.11 a/b/g/n/ac
Support WiFi Shared Hotspot
|
|
| Bluetooth | BT2.1+EDR/3.0/4.1LE/4.2BLE | |
| GNSS |
Centi-meter Level GNSS OEM Board (Optional)
Interial Navigation Module (Optional)
|
|
| I/O Interface | CAN Bus | CAN*1/CAN*2 (Support J1939, CANopen, ISO15765) |
| Serial Interface | RS-232 *2, RS-485 *1 | |
| LAN | Ethernet *1 | |
| ADC | ADC_IN Detection *2, Max. INPUT 12V | |
| Video | 720p*4/1080p*2 AHD Camera | |
| DC_Output | DC_OUTPUT 12V *2 | |
| IO_Input | IO_INPUT *2 | |
| USB | USB2.0*1 | |
| Audio | MIC | Built-in MIC (Optional) |
| Speaker | Built-in Speaker | |
| Rugged Features | Protection Level | IP65 |
| Vibration & Shock | MIL-STD-810 | |
| Road Vehicle Standard | ISO16750 | |
| Operation | Temp. Range: -30℃ ~ +70℃ | |
| Storage | Temp. Range: -40℃ ~ +85℃ | |
| Power | Power Input | 9-36V |
| Ignition | ACC Ignition Detection | |
| Mechanical | Dimension (W*H*D) | 194*127*29mm |
| Weight: | 0.7kg | |
| Button | Function Buttons*3 | |
| SIM Card Slot | SIM Card Slot*1 | |
| Connector |
Standard Industry Waterproof Connector SMA Female Connector (GNSS & 4G) |
